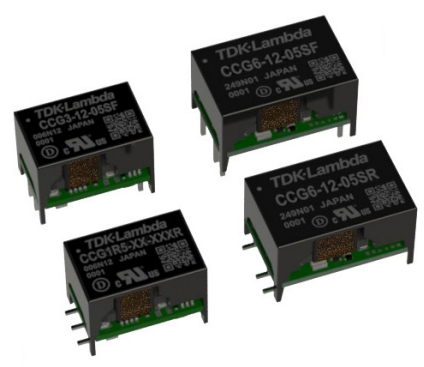

CCG1.5W, 3W, 6W, 10W
TDK-Lambda
Features
•  1.5W, 3W, 6W, 10W DC-DC Converters
•  Single Output / Dual Output
•  Wide 4:1 Input Ranges
•  Space Saving Package Sizes
•  Certified to IEC62368-1
•  Reduced Derating at High Ambient Temperatures
•  No Silicone Potting
CCG1R5 (Single Output)
Standard Model
Input Voltage
(VDC)
Output
(V) / (A)
Output Power
(W)
Specification
Outline(2D)
CCG1R5-12-03SF
12VDC
3.3V / 0.4A
1.32W
  spec
  out
CCG1R5-12-03SR
12VDC
3.3V / 0.4A
1.32W
  spec
  out
CCG1R5-12-05SF
12VDC
5V / 0.3A
1.5W
  spec
  out
CCG1R5-12-05SR
12VDC
5V / 0.3A
1.5W
  spec
  out
CCG1R5-12-12SF
12VDC
12V / 0.13A
1.5W
  spec
  out
CCG1R5-12-12SR
12VDC
12V / 0.13A
1.5W
  spec
  out
CCG1R5-12-15SF
12VDC
15V / 0.1A
1.5W
  spec
  out
CCG1R5-12-15SR
12VDC
15V / 0.1A
1.5W
  spec
  out
CCG1R5-24-03SF
24VDC
3.3V / 0.4A
1.32W
  spec
  out
CCG1R5-24-03SR
24VDC
3.3V / 0.4A
1.32W
  spec
  out
CCG1R5-24-05SF
24VDC
5V / 0.3A
1.5W
  spec
  out
CCG1R5-24-05SR
24VDC
5V / 0.3A
1.5W
  spec
  out
CCG1R5-24-12SF
24VDC
12V / 0.13A
1.56W
  spec
  out
CCG1R5-24-12SR
24VDC
12V / 0.13A
1.56W
  spec
  out
CCG1R5-24-15SF
24VDC
15V / 0.1A
1.5W
  spec
  out
CCG1R5-24-15SR
24VDC
125V / 0.1A
1.5W
  spec
  out
CCG1R5-48-03SF
48VDC
3.3V / 0.4A
1.32W
  spec
  out
CCG1R5-48-03SR
48VDC
3.3V / 0.4A
1.32W
  spec
  out
CCG1R5-48-05SF
48VDC
5V / 0.3A
1.5W
  spec
  out
CCG1R5-48-05SR
48VDC
5V / 0.3A
1.5W
  spec
  out
CCG1R5-48-12SF
48VDC
12V / 0.13A
1.56W
  spec
  out
CCG1R5-48-12SR
48VDC
12V / 0.13A
1.56W
  spec
  out
CCG1R5-48-15SF
48VDC
15V / 0.1A
1.5W
  spec
  out
CCG1R5-48-15SR
48VDC
15V / 0.1A
1.5W
  spec
  out
CCG3 (Single Output)
Standard Model
Input Voltage
(VDC)
Output
(V) / (A)
Output Power
(W)
Specification
Outline(2D)
CCG3-12-03SF
12VDC
3.3V / 0.8A
2.64W
  spec
  out
CCG3-12-03SR
12VDC
3.3V / 0.8A
2.64W
  spec
  out
CCG3-12-05SF
12VDC
5V / 0.6A
3W
  spec
  out
CCG3-12-05SR
12VDC
5V / 0.6A
3W
  spec
  out
CCG3-12-12SF
12VDC
12V / 0.25A
3W
  spec
  out
CCG3-12-12SR
12VDC
12V / 0.25A
3W
  spec
  out
CCG3-12-15SF
12VDC
15V / 0.2A
3W
  spec
  out
CCG3-12-15SR
12VDC
15V / 0.2A
3W
  spec
  out
CCG3-24-03SF
24VDC
3.3V / 0.8A
2.64W
  spec
  out
CCG3-24-03SR
24VDC
3.3V / 0.8A
2.64W
  spec
  out
CCG3-24-05SF
24VDC
5V / 0.6A
3W
  spec
  out
CCG3-24-05SR
24VDC
5V / 0.6A
3W
  spec
  out
CCG3-24-12SF
24VDC
12V / 0.25A
3W
  spec
  out
CCG3-24-12SR
24VDC
12V / 0.25A
3W
  spec
  out
CCG3-24-15SF
24VDC
15V / 0.2A
3W
  spec
  out
CCG3-24-15SR
24VDC
15V / 0.2A
3W
  spec
  out
CCG3-48-03SF
48VDC
3.3V / 0.8A
2.64W
  spec
  out
CCG3-48-03SR
48VDC
3.3V / 0.8A
2.64W
  spec
  out
CCG3-48-05SF
48VDC
5V / 0.6A
3W
  spec
  out
CCG3-48-05SR
48VDC
5V / 0.6A
3W
  spec
  out
CCG3-48-12SF
48VDC
12V / 0.25A
3W
  spec
  out
CCG3-48-12SR
48VDC
12V / 0.25A
3W
  spec
  out
CCG3-48-15SF
48VDC
15V / 0.2A
3W
  spec
  out
CCG3-48-15SR
48VDC
15V / 0.2A
3W
  spec
  out
CCG6 (Single Output)
Standard Model
Input Voltage
(VDC)
Output
(V) / (A)
Output Power
(W)
Specification
Outline(2D)
CCG6-12-03SF
12VDC
3.3V / 1.6A
5.28W
  spec
  out
CCG6-12-03SR
12VDC
3.3V / 1.6A
5.28W
  spec
  out
CCG6-12-05SF
12VDC
5V / 1.2A
6W
  spec
  out
CCG6-12-05SR
12VDC
5V / 1.2A
6W
  spec
  out
CCG6-12-12SF
12VDC
12V / 0.5A
6W
  spec
  out
CCG6-12-12SR
12VDC
12V / 0.5A
6W
  spec
  out
CCG6-12-15SF
11VDC
15V / 0.4A
6W
  spec
  out
CCG6-12-15SR
12VDC
15V / 0.4A
6W
  spec
  out
CCG6-24-03SF
24VDC
3.3V / 1.6A
5.28W
  spec
  out
CCG6-24-03SR
24VDC
3.3V / 1.6A
5.28W
  spec
  out
CCG6-24-05SF
24VDC
5V / 1.2A
6W
  spec
  out
CCG6-24-05SR
24VDC
5V / 1.2A
6W
  spec
  out
CCG6-24-12SF
24VDC
12V / 0.5A
6W
  spec
  out
CCG6-24-12SR
24VDC
12V / 0.5A
6W
  spec
  out
CCG6-24-15SF
24VDC
15V / 0.4A
6W
  spec
  out
CCG6-24-15SR
24VDC
15V / 0.4A
6W
  spec
  out
CCG6-48-03SF
48VDC
3.3V / 1.6A
5.28W
  spec
  out
CCG6-48-03SR
48VDC
3.3V / 1.6A
5.28W
  spec
  out
CCG6-48-05SF
48VDC
5V / 1.2A
6W
  spec
  out
CCG6-48-05SR
48VDC
5V / 1.2A
6W
  spec
  out
CCG6-48-12SF
48VDC
12V / 0.5A
6W
  spec
  out
CCG6-48-12SR
48VDC
12V / 0.5A
6W
  spec
  out
CCG6-48-15SF
48VDC
15V / 0.4A
6W
  spec
  out
CCG6-48-15SR
48VDC
15V / 0.4A
6W
  spec
  out
CCG10 (Single Output)
Standard Model
Input Voltage
(VDC)
Output
(V) / (A)
Output Power
(W)
Specification
Outline(2D)
CCG10-12-03SF
12VDC
3.3V / 2.6A
8.58W
  spec
  out
CCG10-12-03SR
12VDC
3.3V / 2.6A
8.58W
  spec
  out
CCG10-12-05SF
12VDC
5V / 2A
10W
  spec
  out
CCG10-12-05SR
12VDC
5V / 2A
10W
  spec
  out
CCG10-12-12SF
12VDC
12V / 0.9A
10.8W
  spec
  out
CCG10-12-12SR
12VDC
12V / 0.9A
10.8W
  spec
  out
CCG10-12-15SF
12VDC
15V / 0.7A
10.5W
  spec
  out
CCG10-12-15SR
12VDC
15V / 0.7A
10.5W
  spec
  out
CCG10-24-03SF
24VDC
3.3V / 2.6A
8.58W
  spec
  out
CCG10-24-03SR
24VDC
3.3V / 2.6A
8.58W
  spec
  out
CCG10-24-05SF
24VDC
5V / 2A
10W
  spec
  out
CCG10-24-05SR
24VDC
5V / 2A
10W
  spec
  out
CCG10-24-12SF
24VDC
12V / 0.9A
10.8W
  spec
  out
CCG10-24-12SR
24VDC
12V / 0.9A
10.8W
  spec
  out
CCG10-24-15SF
24VDC
15V / 0.7A
10.5W
  spec
  out
CCG10-24-15SR
24VDC
15V / 0.7A
10.5W
  spec
  out
CCG10-48-03SF
48VDC
3.3V / 2.6A
8.58W
  spec
  out
CCG10-48-03SR
48VDC
3.3V / 2.6A
8.58W
  spec
  out
CCG10-48-05SF
48VDC
5V / 2A
10W
  spec
  out
CCG10-48-05SR
48VDC
5V / 2A
10W
  spec
  out
CCG10-48-12SF
48VDC
12V / 0.9A
10.8W
  spec
  out
CCG10-48-12SR
48VDC
12V / 0.9A
10.8W
  spec
  out
CCG10-48-15SF
48VDC
15V / 0.7A
10.5W
  spec
  out
CCG10-48-15SR
48VDC
15V / 0.7A
10.5W
  spec
  out
CCG1R5 (Dual Output)
Standard Model
Input Voltage
(VDC)
Output
(V) / (A)
Output Power
(W)
Specification
Outline(2D)
CCG1R5-12-12DF
12VDC
±12V / ±0.65A
1.56W
  spec
  out
CCG1R5-12-12DR
12VDC
±12V / ±0.065A
1.56W
  spec
  out
CCG1R5-12-15DF
12VDC
±15V / ±0.05A
1.5W
  spec
  out
CCG1R5-12-15DR
12VDC
±15V / ±0.05A
1.5W
  spec
  out
CCG1R5-24-12DF
24VDC
±12V / ±0.65A
1.56W
  spec
  out
CCG1R5-24-12DR
24VDC
±12V / ±0.065A
1.56W
  spec
  out
CCG1R5-24-15DF
24VDC
±15V / ±0.05A
1.5W
  spec
  out
CCG1R5-24-15DR
24VDC
±15V / ±0.05A
1.5W
  spec
  out
CCG1R5-48-12DF
48VDC
±12V / ±0.65A
1.56W
  spec
  out
CCG1R5-48-12DR
48VDC
±12V / ±0.065A
1.56W
  spec
  out
CCG1R5-48-15DF
48VDC
±15V / ±0.05A
1.5W
  spec
  out
CCG1R5-48-15DR
48VDC
±15V / ±0.05A
1.5W
  spec
  out
CCG3 (Dual Output)
Standard Model
Input Voltage
(VDC)
Output
(V) / (A)
Output Power
(W)
Specification
Outline(2D)
CCG3-12-12DF
12VDC
±12V / ±0.13A
3.12W
  spec
  out
CCG3-12-12DR
12VDC
±12V / ±0.13A
3.12W
  spec
  out
CCG3-12-15DF
12VDC
±15V / ±0.1A
3W
  spec
  out
CCG3-12-15DR
12VDC
±15V / ±0.1A
3W
  spec
  out
CCG3-24-12DF
24VDC
±12V / ±0.13A
3.12W
  spec
  out
CCG3-24-12DR
24VDC
±12V / ±0.13A
3.12W
  spec
  out
CCG3-24-15DF
24VDC
±15V / ±0.1A
3W
  spec
  out
CCG3-24-15DR
24VDC
±15V / ±0.1A
3W
  spec
  out
CCG3-48-12DF
48VDC
±12V / ±0.65A
1.56W
  spec
  out
CCG3-48-12DR
48VDC
±12V / ±0.065A
1.56W
  spec
  out
CCG3-48-15DF
48VDC
±15V / ±0.05A
1.5W
  spec
  out
CCG3-48-15DR
48VDC
±15V / ±0.05A
1.5W
  spec
  out
CCG6 (Dual Output)
Standard Model
Input Voltage
(VDC)
Output
(V) / (A)
Output Power
(W)
Specification
Outline(2D)
CCG6-12-12DF
12VDC
±12V / ±0.25A
6W
  spec
  out
CCG6-12-12DR
12VDC
±12V / ±0.25A
6W
  spec
  out
CCG6-12-15DF
12VDC
±15V / ±0.2A
6W
  spec
  out
CCG6-12-15DR
12VDC
±15V / ±0.2A
6W
  spec
  out
CCG6-24-12DF
24VDC
±12V / ±0.25A
6W
  spec
  out
CCG6-24-12DR
24VDC
±12V / ±0.25A
6W
  spec
  out
CCG6-24-15DF
24VDC
±15V / ±0.2A
6W
  spec
  out
CCG6-24-15DR
24VDC
±15V / ±0.2A
6W
  spec
  out
CCG6-48-12DF
48VDC
±12V / ±0.25A
6W
  spec
  out
CCG6-48-12DR
48VDC
±12V / ±0.25A
6W
  spec
  out
CCG6-48-15DF
48VDC
±15V / ±0.2A
6W
  spec
  out
CCG6-48-15DR
48VDC
±15V / ±0.2A
6W
  spec
  out
CCG10 (Dual Output)
Standard Model
Input Voltage
(VDC)
Output
(V) / (A)
Output Power
(W)
Specification
Outline(2D)
CCG10-12-12DF
12VDC
±12V / ±0.42A
10.08W
  spec
  out
CCG10-12-12DR
12VDC
±12V / ±0.42A
10.08W
  spec
  out
CCG10-12-15DF
12VDC
±15V / ±0.34A
10.2W
  spec
  out
CCG10-12-15DR
12VDC
±15V / ±0.34A
10.2W
  spec
  out
CCG10-24-12DF
24VDC
±12V / ±0.42A
10.8W
  spec
  out
CCG10-24-12DR
24VDC
±12V / ±0.42A
10.8W
  spec
  out
CCG10-24-15DF
24VDC
±15V / ±0.34A
10.8W
  spec
  out
CCG10-24-15DR
24VDC
±15V / ±0.34A
10.8W
  spec
  out
CCG10-48-12DF
48VDC
±12V / ±0.42A
10.8W
  spec
  out
CCG10-48-12DR
48VDC
±12V / ±0.42A
10.8W
  spec
  out
CCG10-48-15DF
48VDC
±15V / ±0.34A
10.2W
  spec
  out
CCG10-48-15DR
48VDC
±15V / ±0.34A
10.2W
  spec
