  TDK-Lambda 한국대리점

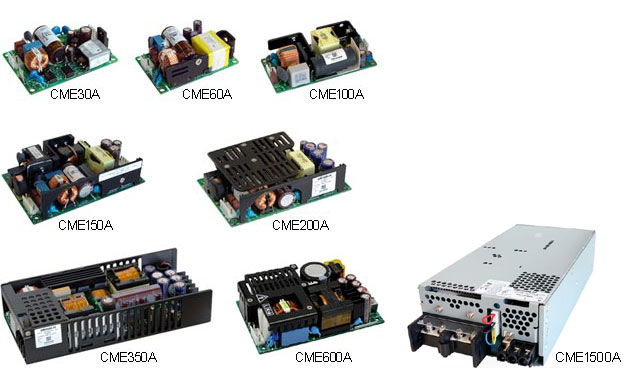

CME-A series
TDK-Lambda
Features
•  30W - 1500W / Single output
•  자연냉각방식에 의한 저소음 지향 AC-DC전원
•  제품소형화를 실현(100W: 2x4인치 50.8x101.6mm)
•  고효율 최대 94%(350w)
•  의료용 규격 적합(IEC60601-1 Ed.4)
•  Medical Equipment Power Supply
•
CME30A
Standard Model
(with cover)
Output Voltage
(V)
Output Current
(A)
Output Power
(W)
Specification
Outline(2D)
CME30A-12
12V
2.5A
30W
  spec
  out
CME30A-12/A
12V
2.5A
30W
  spec
  out
CME30A-24
24V
1.25A
30W
  spec
  out
CME30A-24/A
24V
1.25A
30W
  spec
  out
CME60A
Standard Model
(with cover)
Output Voltage
(V)
Output Current
(A)
Output Power
(W)
Specification
Outline(2D)
CME60A-5
5V
6A
30W
  spec
  out
CME60A-5/A
5V
6A
30W
  spec
  out
CME60A-12
12V
5A
60W
  spec
  out
CME60A-12/A
12V
5A
60W
  spec
  out
CME60A-15
15V
4A
60W
  spec
  out
CME60A-15/A
15V
4A
60W
  spec
  out
CME60A-18
18V
3.35A
60.3W
  spec
  out
CME60A-18/A
18V
3.35A
60.3W
  spec
  out
CME60A-24
24V
2.5A
60W
  spec
  out
CME60A-24/A
24V
2.5A
60W
  spec
  out
CME60A-48
48V
1.25A
60W
  spec
  out
CME60A-48/A
48V
1.25A
60W
  spec
  out
CME100A
Standard Model
(with cover)
Output Voltage
(V)
Output Current
(A)
Output Power
(W)
Specification
Outline(2D)
CME100A-5
5V
12A
60W
  spec
  out
CME100A-5/A
5V
12A
60W
  spec
  out
CME100A-12
12V
6.7A
80.4W
  spec
  out
CME100A-12/A
12V
6.7A
80.4W
  spec
  out
CME100A-15
15V
5.4A
81.0W
  spec
  out
CME100A-15/A
15V
5.4A
81.0W
  spec
  out
CME100A-18
18V
4.5A
81.0W
  spec
  out
CME100A-18/A
18V
4.5A
81.0W
  spec
  out
CME100A-24
24V
4.2A
100.8W
  spec
  out
CME100A-24/A
24V
4.2A
100.8W
  spec
  out
CME100A-28
28V
3.6A
100.8W
  spec
  out
CME100A-28/A
28V
3.6A
100.8W
  spec
  out
CME100A-36
36V
2.8A
100.8W
  spec
  out
CME100A-36/A
36V
2.8A
100.8W
  spec
  out
CME100A-48
48V
2.1A
100.8W
  spec
  out
CME100A-48/A
48V
2.1A
100.8W
  spec
  out
CME150A
Standard Model
(with cover)
Output Voltage
(V)
Output Current
(A)
Output Power
(W)
Specification
Outline(2D)
CME150A-12
12V
12.5A
150W
  spec
  out
CME150A-12/A
12V
12.5A
150W
  spec
  out
CME150A-18
18V
8.4A
151.2W
  spec
  out
CME150A-18/A
18V
8.4A
151.2W
  spec
  out
CME150A-24
24V
6.3A
151.2W
  spec
  out
CME150A-24/A
24V
6.3A
151.2W
  spec
  out
CME150A-36
36V
4.2A
151.2W
  spec
  out
CME150A-36/A
36V
4.2A
151.2W
  spec
  out
CME150A-48
48V
3.2A
153.6W
  spec
  out
CME150A-48/A
48V
3.2A
153.6W
  spec
  out
CME200A
Standard Model
(with cover)
Output Voltage
(V)
Output Current
(A)
Output Power
(W)
Specification
Outline(2D)
CME200A-12
12V
16.7A
200.4W
  spec
  out
CME200A-12/A
12V
16.7A
200.4W
  spec
  out
CME200A-18
18V
11.2A
201.6W
  spec
  out
CME200A-18/A
18V
11.2A
201.6W
  spec
  out
CME200A-24
24V
8.4A
201.6W
  spec
  out
CME200A-24/A
24V
8.4A
201.6W
  spec
  out
CME200A-36
36V
5.5A
198.0W
  spec
  out
CME200A-36/A
36V
5.5A
198.0W
  spec
  out
CME200A-48
48V
4.2A
201.6W
  spec
  out
CME200A-48/A
48V
4.2A
201.6W
  spec
  out
CME350A
Standard Model
(with cover)
Output Voltage
(V)
Output Current
(A)
Output Power
(W)
Specification
Outline(2D)
CME350A-12
12V
29A
348.0W
  spec
  out
CME350A-18
18V
19.4A
349.2.0W
  spec
  out
CME350A-24
24V
14.7A
352.8W
  spec
  out
CME350A-48
48V
7.3A
350.4W
  spec
  out
CME500A
Standard Model
(with cover)
Output Voltage
(V)
Output Current
(A)
Output Power
(W)
Specification
Outline(2D)
CME500A-12
12V
41.7A
500.4W
  spec
  out
CME500A-18(19V)
18V(19V)
26.4A
501.6W
  spec
  out
CME500A-24
24V
20.9A
501.6W
  spec
  out
CME500A-28
28V
17.9A
501.2W
  spec
  out
CME500A-32
32V
15.7A
502.4W
  spec
  out
CME500A-36
36V
13.9A
500.4W
  spec
  out
CME500A-48
48V
10.5A
504.0W
  spec
  out
CME600A
Standard Model
(with cover)
Output Voltage
(V)
Output Current
(A)
Output Power
(W)
Specification
Outline(2D)
CME600A-12
12V
33.4A
400.8W
  spec
  out
CME600A-19
19V
21.1A
400.9W
  spec
  out
CME600A-24
24V
16.7A
400.8W
  spec
  out
CME600A-28
28V
14.3A
400.4W
  spec
  out
CME600A-32
32V
12.5A
400.0W
  spec
  out
CME600A-36
36V
11.1A
399.6W
  spec
  out
CME600A-48
48V
8.4A
403.2W
  spec
  out
CME1500A
Standard Model
(with cover)
Output Voltage
(V)
Output Current
(A)
Output Power
(W)
Specification
Outline(2D)
CME1500A-12
12V
125A
1500W
  spec
  out
CME1500A-15
15V
100A
1500W
  spec
  out
CME1500A-24
24V
63A
1512W
  spec
  out
CME1500A-36
36V
42A
1512W
  spec
  out
CME1500A-48
48V
32A
1536W
  spec
  out
