  TDK-Lambda 한국대리점

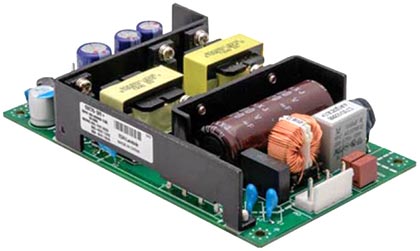

CUT series
TDK-Lambda
Features
•  35W to 75W -Multiple Output
•  Compact size (2x4" and 3x5" footprint)
•  Low profile (1.06")
•  Output 1 isolated from outputs 2 & 3
•  High Efficiency, 85%
•  No minimum loading
•  3 year warranty

[OPTION]
•  None : Open frame type
•  /B : Baseplate type
•  /L : L-bracket(35W) , U-bracket(75W)
•  /A : with cover
•  /T : Open frame with European terminal block type
CUT35 (Open frame type)
Standard Model
Output Voltage
(V)
Output Current
(A)
Output Power
(W)
Specification
Outline(2D)
CUT35J-522
+5V | +12V | -12V
3A | 1.2A | 0.85A
35.4W
  spec
  out
CUT35J-522
5V | 24V
3A | 0.85A
35.4W
  spec
  out
CUT35J-5FF
+5V | +15V | -15V
3A | 1.0A | 0.65A
34.5W
  spec
  out
CUT35J-5FF
5V | 30V
3A | 0.65A
34.5W
  spec
  out
CUT35/B (Baseplate)
Standard Model
Output Voltage
(V)
Output Current
(A)
Output Power
(W)
Specification
Outline(2D)
CUT35J-522/B
+5V | +12V | -12V
3A | 1.2A | 0.85A
35.4W
  spec
  out
CUT35J-522/B
5V | 24V
3A | 0.85A
35.4W
  spec
  out
CUT35J-5FF/B
+5V | +15V | -15V
3A | 1.0A | 0.65A
34.5W
  spec
  out
CUT35J-5FF/B
5V | 30V
3A | 0.65A
34.5W
  spec
  out
CUT35/L (L-bracket)
Standard Model
Output Voltage
(V)
Output Current
(A)
Output Power
(W)
Specification
Outline(2D)
CUT35J-522/L
+5V | +12V | -12V
3A | 1.2A | 0.85A
35.4W
  spec
  out
CUT35J-522/L
5V | 24V
3A | 0.85A
35.4W
  spec
  out
CUT35J-5FF/L
+5V | +15V | -15V
3A | 1.0A | 0.65A
34.5W
  spec
  out
CUT35J-5FF/L
5V | 30V
3A | 0.65A
34.5W
  spec
  out
CUT35/A (with cover)
Standard Model
Output Voltage
(V)
Output Current
(A)
Output Power
(W)
Specification
Outline(2D)
CUT35J-522/A
+5V | +12V | -12V
3A | 1.2A | 0.85A
35.4W
  spec
  out
CUT35J-522/A
5V | 24V
3A | 0.85A
35.4W
  spec
  out
CUT35J-5FF/A
+5V | +15V | -15V
3A | 1.0A | 0.65A
34.5W
  spec
  out
CUT35J-5FF/A
5V | 30V
3A | 0.65A
34.5W
  spec
  out
CUT35/T (European terminal block type)
Standard Model
Output Voltage
(V)
Output Current
(A)
Output Power
(W)
Specification
Outline(2D)
CUT35J-522/T
+5V | +12V | -12V
3A | 1.2A | 0.85A
35.4W
  spec
  out
CUT35J-522/T
5V | 24V
3A | 0.85A
35.4W
  spec
  out
CUT35J-5FF/T
+5V | +15V | -15V
3A | 1.0A | 0.65A
34.5W
  spec
  out
CUT35J-5FF/T
5V | 30V
3A | 0.65A
34.5W
  spec
  out
CUT75 (Open frame type)
Standard Model
Output Voltage
(V)
Output Current
(A)
Output Power
(W)
Specification
Outline(2D)
CUT75J-522
+5V | +12V | -12V
8A | 3A | 1A
76W
  spec
  out
CUT75J-522
5V | 24V
8A | 1.0A
64W
  spec
  out
CUT75J-5FF
+5V | +15V | -15V
8A | 2.5A | 1.0A
77.5W
  spec
  out
CUT75J-5FF
5V | 30V
8A | 1.0A
70W
  spec
  out
CUT75/B (Baseplate)
Standard Model
Output Voltage
(V)
Output Current
(A)
Output Power
(W)
Specification
Outline(2D)
CUT75J-522/B
+5V | +12V | -12V
8A | 3A | 1A
76W
  spec
  out
CUT75J-522/B
5V | 24V
8A | 1.0A
64W
  spec
  out
CUT75J-5FF/B
+5V | +15V | -15V
8A | 2.5A | 1.0A
77.5W
  spec
  out
CUT75J-5FF/B
5V | 30V
8A | 1.0A
70W
  spec
  out
CUT75/L (U-bracket)
Standard Model
Output Voltage
(V)
Output Current
(A)
Output Power
(W)
Specification
Outline(2D)
CUT75J-522/L
+5V | +12V | -12V
8A | 3A | 1A
76W
  spec
  out
CUT75J-522/L
5V | 24V
8A | 1.0A
64W
  spec
  out
CUT75J-5FF/L
+5V | +15V | -15V
8A | 2.5A | 1.0A
77.5W
  spec
  out
CUT75J-5FF/L
5V | 30V
8A | 1.0A
70W
  spec
  out
CUT75/A (with cover)
Standard Model
Output Voltage
(V)
Output Current
(A)
Output Power
(W)
Specification
Outline(2D)
CUT75J-522/A
+5V | +12V | -12V
8A | 3A | 1A
76W
  spec
  out
CUT75J-522/A
5V | 24V
8A | 1.0A
64W
  spec
  out
CUT75J-5FF/A
+5V | +15V | -15V
8A | 2.5A | 1.0A
77.5W
  spec
  out
CUT75J-5FF/A
5V | 30V
8A | 1.0A
70W
  spec
  out
CUT75/T (European terminal block type)
Standard Model
Output Voltage
(V)
Output Current
(A)
Output Power
(W)
Specification
Outline(2D)
CUT75J-522/T
+5V | +12V | -12V
8A | 3A | 1A
76W
  spec
  out
CUT75J-522/T
5V | 24V
8A | 1.0A
64W
  spec
  out
CUT75J-5FF/T
+5V | +15V | -15V
8A | 2.5A | 1.0A
77.5W
  spec
  out
CUT75J-5FF/T
5V | 30V
8A | 1.0A
70W
  spec
  out
