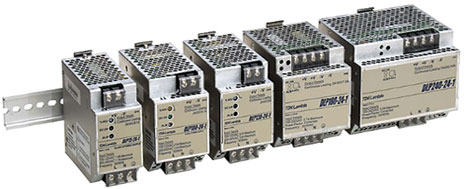

DLP series
TDK-Lambda
Features
•  75W to 240W / Single output
•  Low Cost
•  UL 508 Listed
•  Convection Cooled
•  Conducted and Radiated EMI
•  Input Transient Protection, IEC61000-4
•  Conforms to EN61000-3-2 (PFC)
•  3 year warranty
DLP75
Standard Model
Output Voltage
(V)
Output Current
(A)
Output Power
(W)
Specification
Outline(2D)
DLP75-24-1
24V
3.1A
74.4W
DLP100
Standard Model
Output Voltage
(V)
Output Current
(A)
Output Power
(W)
Specification
Outline(2D)
DLP100-24-1
24V
4.1A
98.4W
DLP120
Standard Model
Output Voltage
(V)
Output Current
(A)
Output Power
(W)
Specification
Outline(2D)
DLP120-24-1
24V
5A
120W
DLP180
Standard Model
Output Voltage
(V)
Output Current
(A)
Output Power
(W)
Specification
Outline(2D)
DLP180-24-1
24V
7.5A
180W
DLP240
Standard Model
Output Voltage
(V)
Output Current
(A)
Output Power
(W)
Specification
Outline(2D)
DLP240-24-1
24V
10A
240W
