  TDK-Lambda 한국대리점

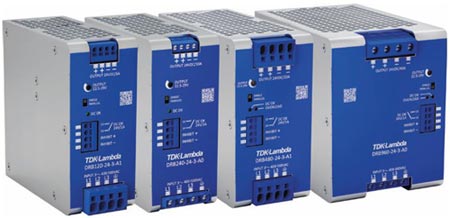

DRB-3 series
TDK-Lambda
Features
•  120W, 240W, 480W, 960W / Single output
•  Three Phase Power Supplies
•  50% Boost (peak) Power Ratings for up to 600 Seconds
•  High Efficiency up to 96.3%
•  Narrow Case Widths
•  Curve B Radiated and Conducted EMI
•  Long E-Capacitor Life (typically 10 Years)
•  Low Off-Load Power Consumption
•  Supports Capacitive and Inductive Loading
DRB120-3 (AC 3Phase 350 to 575)
Standard Model
Output Voltage
(V)
Output Current
(A)
Output Power
(W)
Specification
Outline(2D)
DRB120-12-3-A0
12V
10A
120W
  spec
  out
DRB120-12-3-A1
12V
10A
120W
  spec
  out
DRB120-24-3-A0
24V
5A
120W
  spec
  out
DRB120-24-3-A1
24V
5A
120W
  spec
  out
DRB240-3 (AC 3Phase 350 to 575)
Standard Model
Output Voltage
(V)
Output Current
(A)
Output Power
(W)
Specification
Outline(2D)
DRB240-24-3-A0
24V
10A
240W
  spec
  out
DRB240-24-3-A1
24V
10A
240W
  spec
  out
DRB240-48-3-A0
48V
5A
240W
  spec
  out
DRB240-48-3-A1
48V
5A
240W
  spec
  out
DRB480-3 (AC 3Phase 350 to 575)
Standard Model
Output Voltage
(V)
Output Current
(A)
Output Power
(W)
Specification
Outline(2D)
DRB480-24-3-A0
24V
20A
480W
  spec
  out
DRB480-24-3-A1
24V
20A
480W
  spec
  out
DRB480-48-3-A0
48V
10A
480W
  spec
  out
DRB480-48-3-A1
48V
10A
480W
  spec
  out
DRB480-72-3-A0
72V
6.7A
480W
  spec
  out
DRB480-72-3-A1
72V
6.7A
480W
  spec
  out
DRB960-3 (AC 3Phase 350 to 575)
Standard Model
Output Voltage
(V)
Output Current
(A)
Output Power
(W)
Specification
Outline(2D)
DRB960-24-3-A0
24V
40A
960W
  spec
  out
DRB960-24-3-A1
24V
40A
960W
  spec
  out
DRB960-48-3-A0
48V
20A
960W
  spec
  out
DRB960-48-3-A1
48V
20A
960W
  spec
  out
DRB960-72-3-A0
72V
13.3A
960W
  spec
  out
DRB960-72-3-A1
72V
13.3A
960W
  spec
  out
