  TDK-Lambda 한국대리점

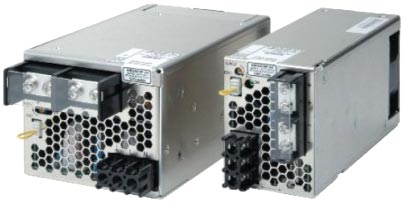

HWS-P series
TDK-Lambda
Features
•  300W, 600W / Single output
•  Limited Lifetime Warranty
•  300% Peak Power Capability
•  Small Package Size
•  High Efficiency
•  Universal Input (85 - 265VAC)
HWS300P
Standard Model
(with cover)
Output Voltage
(V)
Output Current
(A)
Output Power
(W)
Peak Current
(VAC110 / VAC220)
Specification
Outline(2D)
HWS300P-24
24V
12.5A
300W
21A / 42A
  spec
  out
HWS300P-36
36V
8.4A
302.4W
14A / 28A
  spec
  out
HWS300P-48
48V
6.3A
302.4W
10.5A / 21A
  spec
  out
HWS600P
Standard Model
(with cover)
Output Voltage
(V)
Output Current
(A)
Output Power
(W)
Peak Current
(VAC110 / VAC220)
Specification
Outline(2D)
HWS600P-24
24V
25A
600W
40.5A / 83A
  spec
  out
HWS600P-36
36V
16.7A
601.2W
27A / 55.5A
  spec
  out
HWS600P-48
48V
12.5A
600W
20A / 41.5A
  spec
  out
