  TDK-Lambda 한국대리점

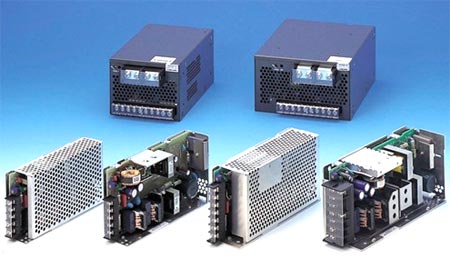

JWS series
TDK-Lambda
Features
•  50W - 600W / Single output
•  Warranty 5 years
•  Universal Input (85 - 265VAC)
•
•
•
•
JWS50
Standard Model
(with cover)
Output Voltage
(V)
Output Current
(A)
Output Power
(W)
Specification
Outline(2D)
JWS50-3/A
3.3V
10A
33W
  spec
  out
JWS50-5/A
5V
10A
50W
  spec
  out
JWS50-9/A
9V
5.6A
50.4W
  spec
  out
JWS50-12/A
12V
4.3A
51.6W
  spec
  out
JWS50-15/A
15V
3.5A
52.5W
  spec
  out
JWS50-24/A
24V
2.2A
52.8W
  spec
  out
JWS50-28/A
28V
2.0A
56W
  spec
  out
JWS50-48/A
48V
1.1A
52.8W
  spec
  out
JWS75
Standard Model
(with cover)
Output Voltage
(V)
Output Current
(A)
Output Power
(W)
Specification
Outline(2D)
JWS75-3/A
3.3V
15A
49.5W
  spec
  out
JWS75-5/A
5V
15A
75W
  spec
  out
JWS75-12/A
12V
6.3A
75.6W
  spec
  out
JWS75-15/A
15V
5A
75W
  spec
  out
JWS75-24/A
24V
3.2A
76.8W
  spec
  out
JWS75-48/A
48V
1.6A
76.8W
  spec
  out
JWS100
Standard Model
(with cover)
Output Voltage
(V)
Output Current
(A)
Output Power
(W)
Specification
Outline(2D)
JWS100-3/A
3.3V
20A
66W
  spec
  out
JWS100-5/A
5V
20A
100W
  spec
  out
JWS100-6/A
6V
16.7A
100.2W
  spec
  out
JWS100-9/A
9V
11.2A
100.8W
  spec
  out
JWS100-12/A
12V
8.5A
102W
  spec
  out
JWS100-15/A
15V
7A
105.0W
  spec
  out
JWS100-24/A
24V
4.5A
108W
  spec
  out
JWS100-28/A
28V
3.6A
100.8W
  spec
  out
JWS100-48/A
48V
2.1A
100.8W
  spec
  out
JWS150
Standard Model
(with cover)
Output Voltage
(V)
Output Current
(A)
Output Power
(W)
Specification
Outline(2D)
JWS150-3/A
3.3V
30A
99W
  spec
  out
JWS150-5/A
5V
30A
150W
  spec
  out
JWS150-12/A
12V
13A
156W
  spec
  out
JWS150-15/A
15V
10A
150W
  spec
  out
JWS150-24/A
24V
6.5A
156W
  spec
  out
JWS150-28/A
28V
5.5A
154W
  spec
  out
JWS150-48/A
48V
3.3A
158.4W
  spec
  out
JWS300
Standard Model
(with cover)
Output Voltage
(V)
Output Current
(A)
Output Power
(W)
Specification
Outline(2D)
JWS300-2
3.3V
60A
120W
  spec
  out
JWS300-3
3.3V
60A
198W
  spec
  out
JWS300-5
5V
60A
300W
  spec
  out
JWS300-6
6V
50A
300W
  spec
  out
JWS300-9
9V
34A
306W
  spec
  out
JWS300-12
12V
27A
324W
  spec
  out
JWS300-15
15V
22A
330W
  spec
  out
JWS300-18
18V
18A
324W
  spec
  out
JWS300-24
24V
14A
336W
  spec
  out
JWS300-28
28V
12A
336W
  spec
  out
JWS300-48
48V
6.5A
312W
  spec
  out
JWS600
Standard Model
(with cover)
Output Voltage
(V)
Output Current
(A)
Output Power
(W)
Specification
Outline(2D)
JWS600-2
2V
120A
240W
  spec
  out
JWS600-3
3.3V
120A
396W
  spec
  out
JWS600-5
5V
120A
600W
  spec
  out
JWS600-6
6V
100A
600W
  spec
  out
JWS600-8
8V
68A
544W
  spec
  out
JWS600-9
9V
68A
612W
  spec
  out
JWS600-12
12V
53A
636W
  spec
  out
JWS600-15
15V
43A
645W
  spec
  out
JWS600-24
24V
27A
648W
  spec
  out
JWS600-28
28V
23A
644W
  spec
  out
JWS600-48
48V
13A
624W
  spec
  out
