  TDK-Lambda 한국대리점

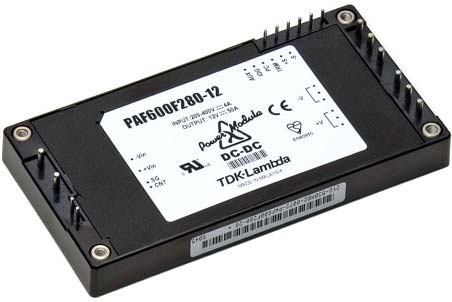

PAF series
TDK-Lambda
Features
•  500 to 700W DC-DC Converters
•  Single Output
•  24V, 48V, 280V Input Full brick DC-DC Converters
•  Opto Isolated Remote On / Off
•  Wide Adjustable Output Range
•  Parallel Pin
•  ASIC Design
PAF500F (Single Output)
Standard Model
Input Voltage
(VDC)
Output
(V) / (A)
Output Power
(W)
Specification
Outline(2D)
PAF500F48-3.3
36~76VDC
3.3V / 80A
264W
  spec
  out
PAF500F48-5
36~76VDC
5V / 80A
400W
  spec
  out
PAF500F24-12
19~36VDC
12V / 42A
504W
  spec
  out
PAF500F48-12
36~76VDC
12V / 42A
504W
  spec
  out
PAF500F24-28
18~36VDC
28V / 18A
504W
  spec
  out
PAF500F48-28
36~76VDC
28V / 18A
504W
  spec
  out
PAF600F (Single Output)
Standard Model
Input Voltage
(VDC)
Output
(V) / (A)
Output Power
(W)
Specification
Outline(2D)
PAF600F24-12
20~36VDC
12V / 50A
600W
  spec
  out
PAF600F48-12
36~76VDC
12V / 50A
600W
  spec
  out
PAF600F24-28
19~36VDC
28V / 21.5A
602W
  spec
  out
PAF600F48-28
36~76VDC
28V / 21.5A
602W
  spec
  out
PAF700F (Single Output)
Standard Model
Input Voltage
(VDC)
Output
(V) / (A)
Output Power
(W)
Specification
Outline(2D)
PAF700F48-12
36~76VDC
12V / 58.5A
702W
  spec
  out
PAF700F48-28
36~76VDC
28V / 25A
700W
  spec
  out
PAF450F280 (Single Output)
Standard Model
Input Voltage
(VDC)
Output
(V) / (A)
Output Power
(W)
Specification
Outline(2D)
PAF450F280-12
200~400VDC
12V / 38A
456W
  spec
  out
PAF450F280-24
200~400VDC
24V / 19A
456W
  spec
  out
PAF450F280-28
200~400VDC
28V / 16.5A
462W
  spec
  out
PAF450F280-48
200~400VDC
48V / 9.5A
456W
  spec
  out
PAF600F280 (Single Output)
Standard Model
Input Voltage
(VDC)
Output
(V) / (A)
Output Power
(W)
Specification
Outline(2D)
PAF600F280-12
200~400VDC
12V / 50A
600W
  spec
  out
PAF600F280-24
200~400VDC
24V / 25A
600W
  spec
  out
PAF600F280-28
200~400VDC
28V / 21.5A
602W
  spec
  out
PAF600F280-48
200~400VDC
48V / 12.5A
600W
  spec
  out
