  TDK-Lambda 한국대리점

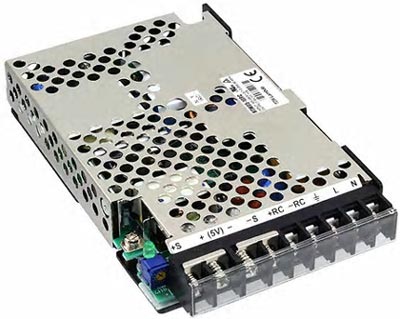

RTW series
TDK-Lambda
Features
•  50W to 300W - Single Output
•  Super-slim type (1U/2Urack size)
•  Meeting the standard of the harmonics current limiter EN61000-3-2
•  Complying with radiation noise and conduction noise regulations FCC-B and VCCI-B
•  Remote On/Off function incorporated (use and nonuse can be switched by the internal switch)
•  Electrolytic capacitor lifetime: 60,000H or over
•
RTW (50W) / with cover
Standard Model
(with cover)
Output Voltage
(V)
Output Current
(A)
Output Power
(W)
Specification
Outline(2D)
RTW03-12RC
3.3V
12.5A
41.2W
  spec
  out
RTW05-10RC
5V
10A
50W
  spec
  out
RTW12-4R3C
12V
4.3A
51.6W
  spec
  out
RTW15-3R5C
15V
3.5A
52.5W
  spec
  out
RTW24-2R2C
24V
2.2A
52.8W
  spec
  out
RTW28-1R8C
28V
1.8A
50.4W
  spec
  out
RTW48-1R1C
48V
1.1A
52.8W
  spec
  out
RTW (100W) / with cover
Standard Model
(with cover)
Output Voltage
(V)
Output Current
(A)
Output Power
(W)
Specification
Outline(2D)
RTW03-25RC
3.3V
25A
82.5W
  spec
  out
RTW05-20RC
5V
20A
100W
  spec
  out
RTW12-8R4C
12V
8.4A
100.8W
  spec
  out
RTW15-6R7C
15V
6.7A
100.5W
  spec
  out
RTW24-4R2C
24V
4.2A
100.8W
  spec
  out
RTW28-3R6C
28V
3.6A
100.8W
  spec
  out
RTW48-2R1C
48V
2.1A
100.8W
  spec
  out
RTW (150W) / with cover
Standard Model
(with cover)
Output Voltage
(V)
Output Current
(A)
Output Power
(W)
Specification
Outline(2D)
RTW03-35RC
3.3V
35A
115.5W
  spec
  out
RTW05-30RC
5V
30A
150W
  spec
  out
RTW12-12R5C
12V
12.5A
150W
  spec
  out
RTW15-10RC
15V
6.7A
150W
  spec
  out
RTW24-6R3C
24V
6.3A(Peak 10A)
151.2W
  spec
  out
RTW28-5R4C
28V
5.4A
151.2W
  spec
  out
RTW48-3R2C
48V
3.2A
153.6W
  spec
  out
RTW (300W) / with cover
Standard Model
(with cover)
Output Voltage
(V)
Output Current
(A)
Output Power
(W)
Specification
Outline(2D)
RTW03-70RH
3.3V
70A
231W
  spec
  out
RTW05-60RH
5V
60A
300W
  spec
  out
RTW12-25RH
12V
25A
300W
  spec
  out
RTW15-20RH
15V
20A
300W
  spec
  out
RTW24-13RH
24V
13A(Peak 20A)
312W
  spec
  out
RTW28-11RH
28V
11A
308W
  spec
  out
RTW48-6R5H
48V
6.5A
312W
  spec
  out
