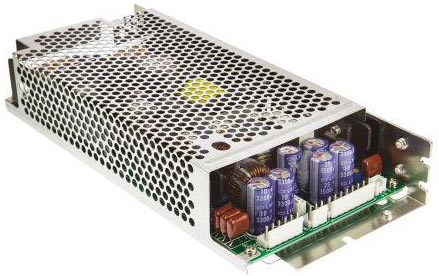

ZWQ series
TDK-Lambda
Features
•  80W, 130W - Multiple Outputs 4ch
•  Low Profile (1U height)
•  PFC: Conforms to EN61000-3-2
•  EN55022 Curve B
•  Forced Air or Convection Cooled
•  3 year warranty
ZWQ80
Standard Model
Output Voltage
(V)
Output Current
(A)
Output Power
(W)
Specification
Outline(2D)
ZWQ80-5225
+5V | +12V | -12V | +5V
8A | 2A | 2A | 7A
80W
  spec
  out
ZWQ80-5222
+5V | +12V | -12V | +12V
8A | 2A | 2A | 3A
80W
  spec
  out
ZWQ80-5224
+5V | +12V | -12V | +24V
8A | 2A | 2A | 1.5A
80W
  spec
  out
ZWQ80-5223
+5V | +12V | -12V | +3.3V
8A | 2A | 2A | 7A
80W
  spec
  out
ZWQ80/L
Standard Model
Output Voltage
(V)
Output Current
(A)
Output Power
(W)
Specification
Outline(2D)
ZWQ80-5225/L
+5V | +12V | -12V | +5V
8A | 2A | 2A | 7A
80W
  spec
  out
ZWQ80-5222/L
+5V | +12V | -12V | +12V
8A | 2A | 2A | 3A
80W
  spec
  out
ZWQ80-5224/L
+5V | +12V | -12V | +24V
8A | 2A | 2A | 1.5A
80W
  spec
  out
ZWQ80-5223/L
+5V | +12V | -12V | +3.3V
8A | 2A | 2A | 7A
80W
  spec
  out
ZWQ80/A
Standard Model
Output Voltage
(V)
Output Current
(A)
Output Power
(W)
Specification
Outline(2D)
ZWQ80-5225/A
+5V | +12V | -12V | +5V
8A | 2A | 2A | 7A
80W
  spec
  out
ZWQ80-5222/A
+5V | +12V | -12V | +12V
8A | 2A | 2A | 3A
80W
  spec
  out
ZWQ80-5224/A
+5V | +12V | -12V | +24V
8A | 2A | 2A | 1.5A
80W
  spec
  out
ZWQ80-5223/A
+5V | +12V | -12V | +3.3V
8A | 2A | 2A | 7A
80W
  spec
  out
ZWQ130
Standard Model
Output Voltage
(V)
Output Current
(A)
Output Power
(W)
Specification
Outline(2D)
ZWQ130-5225
+5V | +12V | -12V | +5V
15A | 4A | 4A | 10A
130W
  spec
  out
ZWQ130-5222
+5V | +12V | -12V | +12V
15A | 4A | 4A | 4A
130W
  spec
  out
ZWQ130-5224
+5V | +12V | -12V | +24V
15A | 4A | 4A | 2A
130W
  spec
  out
ZWQ130-5223
+5V | +12V | -12V | +3.3V
15A | 4A | 4A | 10A
130W
  spec
  out
ZWQ130/L
Standard Model
Output Voltage
(V)
Output Current
(A)
Output Power
(W)
Specification
Outline(2D)
ZWQ130-5225/L
+5V | +12V | -12V | +5V
15A | 4A | 4A | 10A
130W
  spec
  out
ZWQ130-5222/L
+5V | +12V | -12V | +12V
15A | 4A | 4A | 4A
130W
  spec
  out
ZWQ130-5224/L
+5V | +12V | -12V | +24V
15A | 4A | 4A | 2A
130W
  spec
  out
ZWQ130-5223/L
+5V | +12V | -12V | +3.3V
15A | 4A | 4A | 10A
130W
  spec
  out
ZWQ130/A
Standard Model
Output Voltage
(V)
Output Current
(A)
Output Power
(W)
Specification
Outline(2D)
ZWQ130-5225/A
+5V | +12V | -12V | +5V
15A | 4A | 4A | 10A
130W
  spec
  out
ZWQ130-5222/A
+5V | +12V | -12V | +12V
15A | 4A | 4A | 4A
130W
  spec
  out
ZWQ130-5224/A
+5V | +12V | -12V | +24V
15A | 4A | 4A | 2A
130W
  spec
  out
ZWQ130-5223/A
+5V | +12V | -12V | +3.3V
15A | 4A | 4A | 10A
130W
  spec
  out
